Motor Parts Case Study

Job Specification:

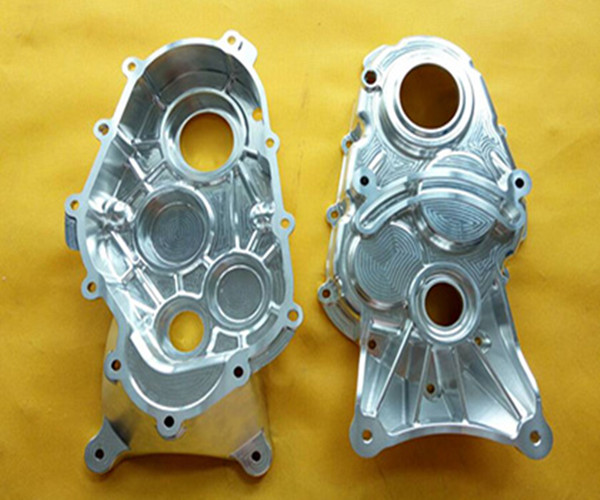

Project: Motorcycle Engine Part

Material: Aluminum 6061-T6

Processes Involved: 3-Axis CNC Machining

Split or Not: No

Finishing: As Machined

Quantity:  16 Pcs
Lead Time:  10 Working Days

Tolerance RequirementGeneral ± 0.005’’

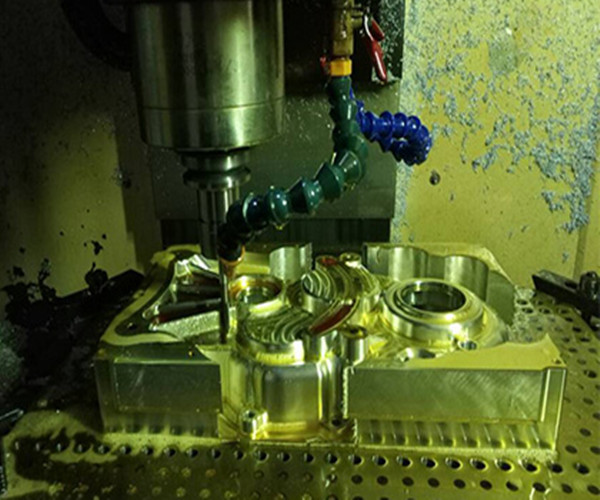

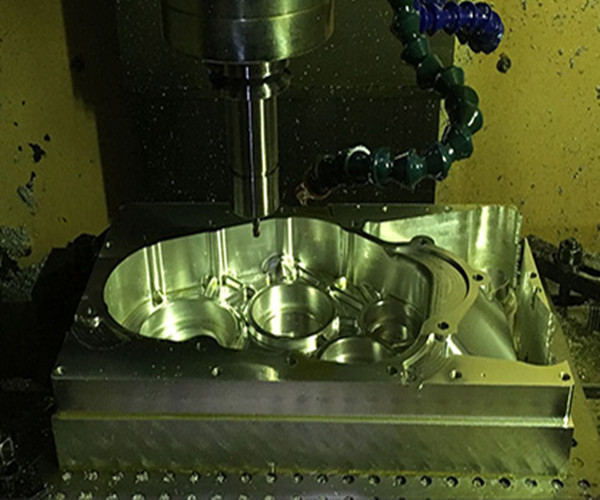

Firstly machine the part side by side;

Cutting oil is used all the way to cool the cutters and smooth the surfaces.

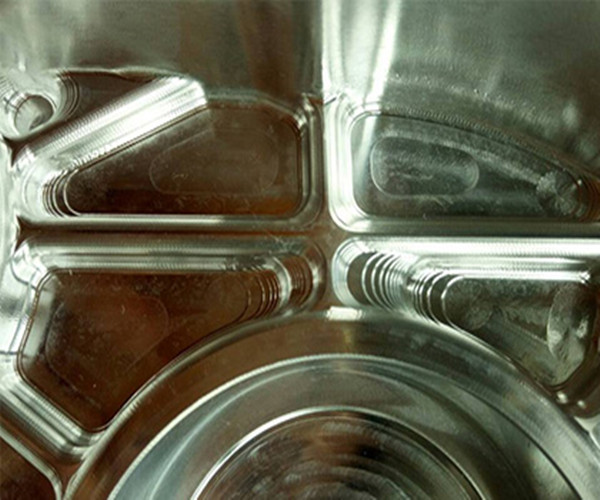

To achieve the cambered surfaces requirements,the minimum cutter used is R0.5.
